■ Wall-Mounted Type (K Type)

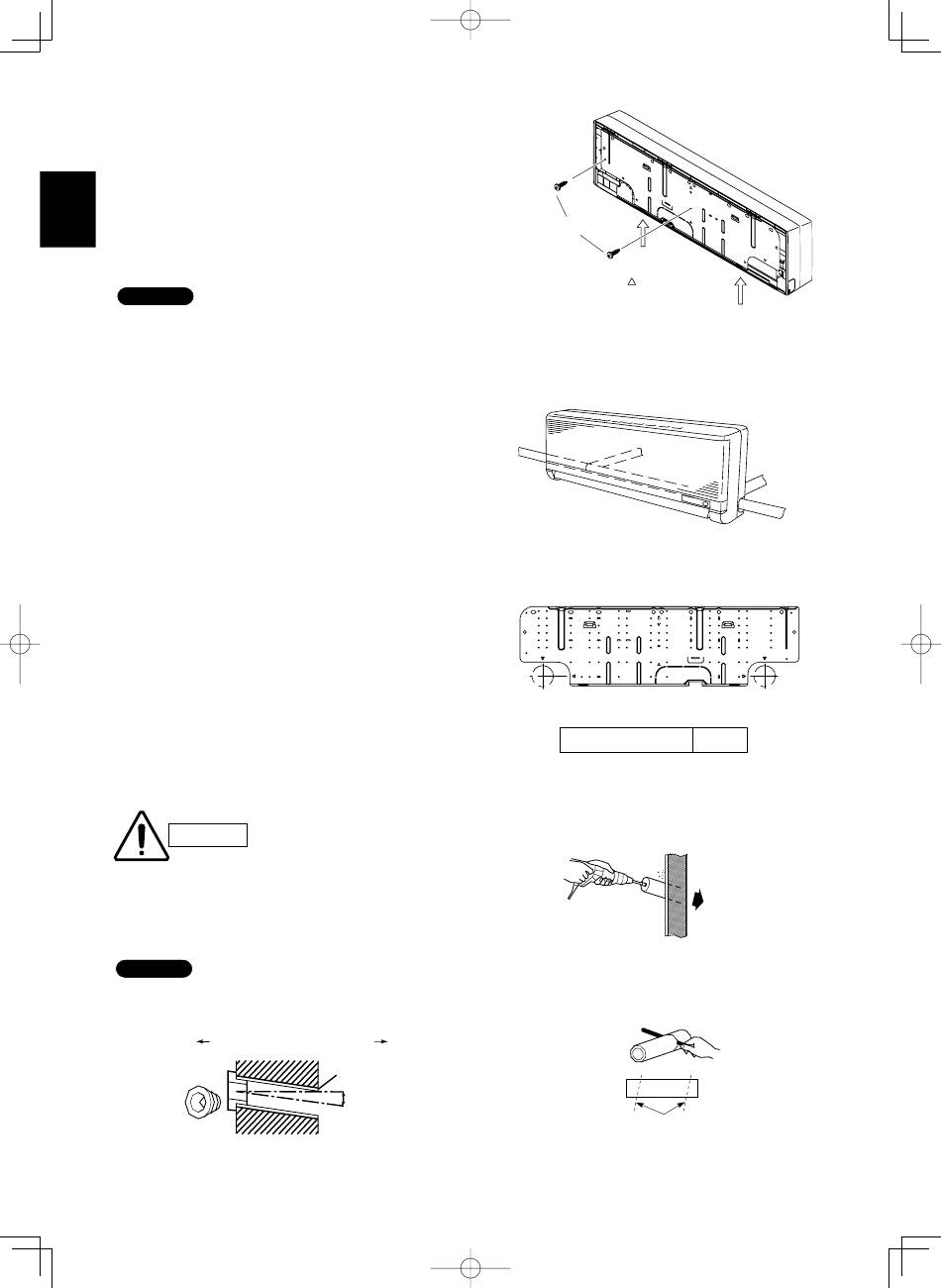

3-6. Removing the Rear Panel from the Unit

(1) Remove the set screws used to fasten the rear
panel to the indoor unit during transportation.
GB
(2) Press up on the rear panel at the 2 locations
shown by the arrows in the figure at right, and
remove the rear panel.
FR
NOTE
Tubing can be extended in 4 directions as shown in
Fig. 3-14. Select the direction which will provide the
shortest run to the outdoor unit.
DE

3-7. Selecting and Making a Hole

(1) Remove the rear panel from the indoor unit and
place it on the wall at the location selected. Fix
IT
the rear panel and hook the unit onto the wall
temporarily. Make sure the unit is horizontal using
a carpenter's level or tape measure to measure
down from the ceiling.
PT
(2) Determine which notch of the rear panel should be
used. (Fig. 3-15)
(3) Before drilling a hole, check that there are no
studs or pipes behind the determined location.
GR
The above precautions are also applicable if
tubing goes through the wall in any other location.
(4) Using a sabre saw, key hole saw or hole-cutting
drill attachment, make a hole (dia. 80 mm) in the
ES
wall. (Fig. 3-16)
(5) Measure the thickness of the wall from the inside
edge to the outside edge and cut the PVC pipe at
a slight angle 6 mm shorter than the thickness of
the wall. (Fig. 3-17)
CAUTION
(6) Place the plastic cover over the end of the pipe (for
indoor side only) and insert in the wall. (Fig. 3-18)
NOTE
The hole should be made at a slight downward
gradient to the outside.
