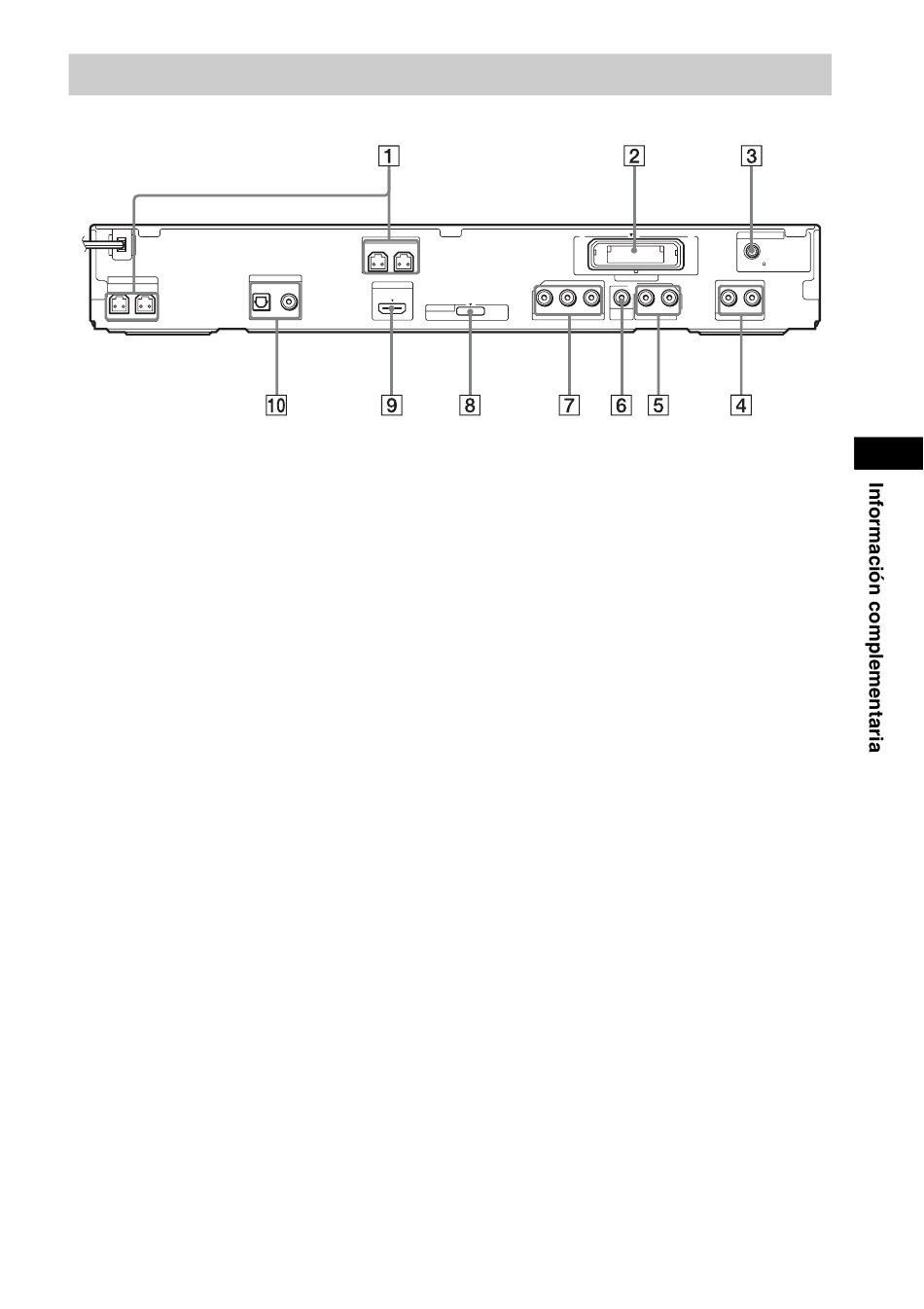

Panel posterior

SPEAKER
CENTER SUBWOOFER
A Tomas SPEAKER (19)
B Ranura EZW-RT10 (27)
C Toma COAXIAL 75Ω FM (26)
D Tomas SAT/CABLE (AUDIO IN R/L) (24)
E Tomas TV (AUDIO IN R/L) (23)
F Toma VIDEO OUT (21)
G Tomas COMPONENT VIDEO OUT (21)
SPEAKER
FRONT R FRONT L
TV
HDMI OUT
DIGITAL IN
OPTICAL COAXIAL
DMPORT
DC5V Y P /C P /C
B B R R
0.7A MAX
COMPONENT VIDEO OUT
H Toma DMPORT (DIGITAL MEDIA
PORT) (24, 88)
I Toma HDMI OUT (21)
J Tomas TV (DIGITAL IN COAXIAL/
OPTICAL) (23)
ANTENNA
COAXIAL 75
FM
EZW-RT10
R AUDIO IN L R AUDIO IN L
VIDEO
OUT TV SAT/CABLE
