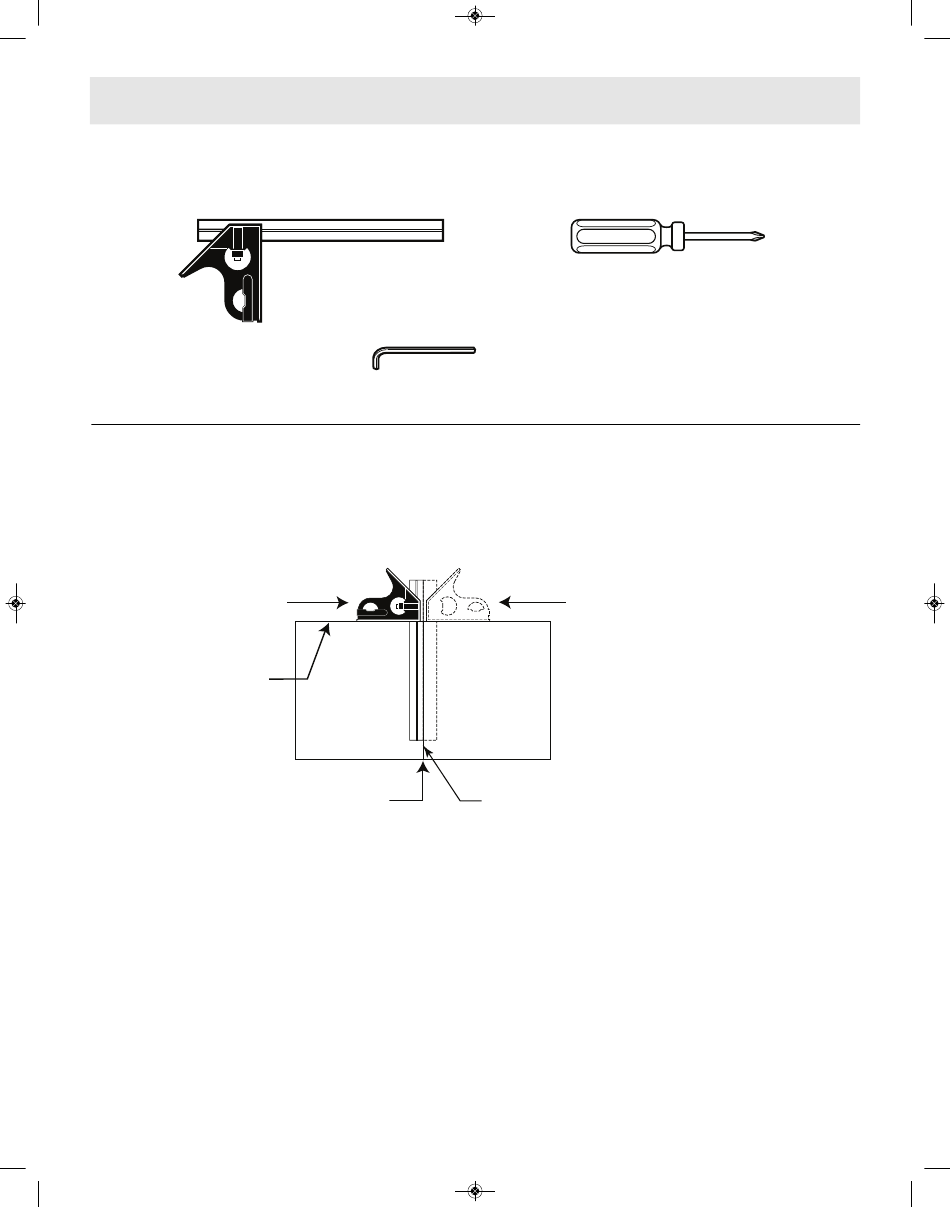

Tools Needed for Assembly and Alignment

1. Position square and
draw a light line
3/4" board with
straight top edge
Assembly
Combination Square
5mm Hex Key
(supplied)
Combination Square Must Be True
Checking Combination Square
drawn line
#2 Phillips Screwdriver
2. Flip square
(shown in dotted position)
3. Check edge of flipped
square against the drawn line.
There should be no gap or
overlap at the bottom end.
no gap or overlap
