Connecting the power supply cable

i
If you are using the CRI 846/CRI 846H tester set, the
power supply cables are already connected. In this
case, please skip this section.
i
The two power supply cables 1 684 463 503 and
1 684 463 504 are supplied with the trigger electro-
nics 1 687 023 369 (Special accessory).
Procedure:
1. When using the KMA 822: Remove the trolley rear panel.
2. Remove the protective cap from the rear of the volta-
ge stabilizer.
3. Pull the connecting cables through the openings in
the protective cap.
2

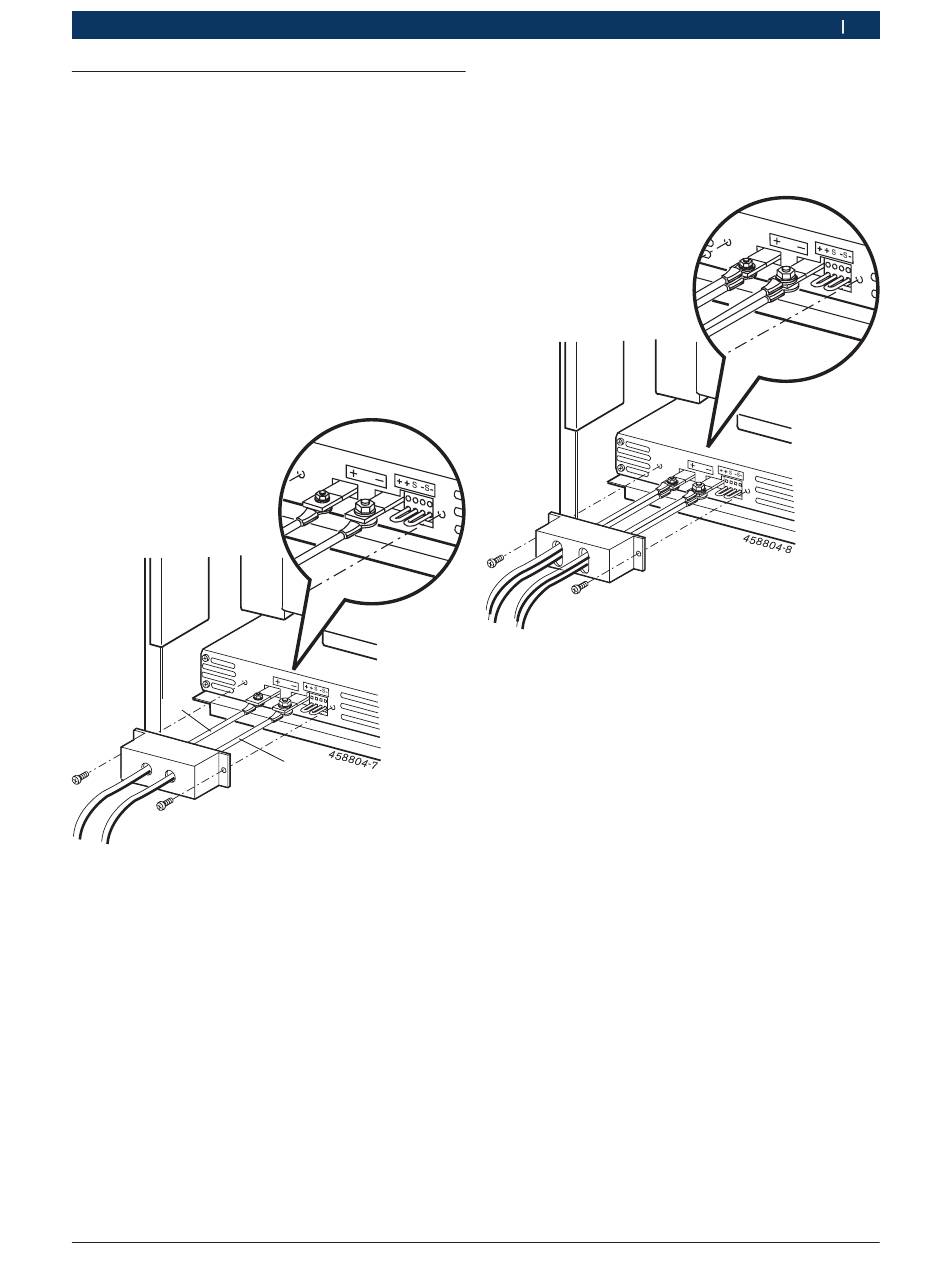

Fig. 16: Connection to the voltage stabilizer
1 Connecting cable 1 684 463 504
2 Connecting cable 1 684 463 503
4. Connect the power supply cables using hexagon
bolts, washers and hexagon nuts.
5. Fit the protective cap.
Robert Bosch GmbH
1
Electrical connection | CAM 847 | 27
i
If the voltage stabilizer is destined for multiple use,
e.g. for tester set VPM 844, oblong holes must be
filed in the protective cap. Connect doubled-up
cables to a single output as shown in the following
illustration.
Fig. 17: Connection for multiple use
