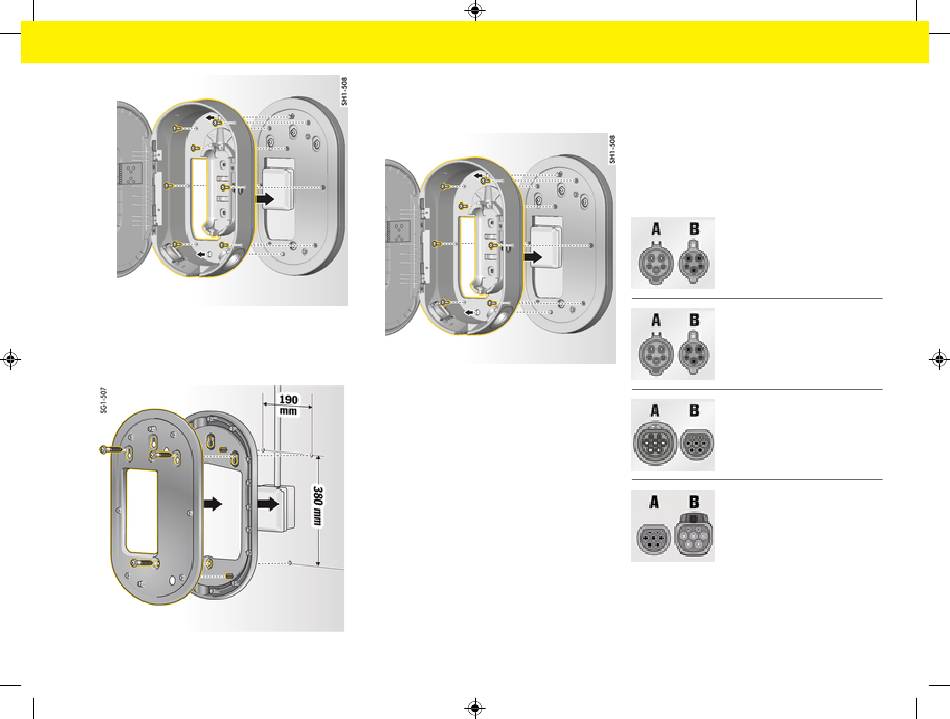

Fig. 33: Screwing charging dock to assembly plate
4. Screw the charging dock to the assembly plate.

Installation with spacer

Fig. 34: Drilling dimensions
1. Mark the drill holes on the wall.
2. Drill the mounting holes and insert wall plugs.
3. Screw the assembly plate and spacer to the wall.
Fig. 35: Screwing charging dock to assembly plate
4. Screw the charging dock to the assembly plate.

Set up

Vehicle charging cables and supply
cables
Information on vehicle charging cables
and connectors
Different vehicle charge ports A and vehicle plugs B
are available depending on the vehicle equipment.
IEC 62196-2/
SAE-J1772-2009
Type 1 UL/IEC
IEC 62196-2/
SAE-J1772-2009
Type 1
IEC 62196-2
Type 2
GB/T 20234.2
Type GB

Selecting a Supply Cable

For regular charging with optimum charging speed,
use only the supply cables listed below. The maxi-
mum achievable charging power is up to 22 kW (de-
Set up
