15.0 TECHNICAL DATA

Recommended air supply pressure .......... 8 - 10 bar
Electrical motor speed ................................. 14 rpm
Raccomanded
electric supply ......................... monophase 1,5 kW -
Maximum wheel diameter
(for version CB and AD) ..................................... 50"
Maximum wheel diameter
(for version ST) .................................................. 47"
Wheel max. width ............................................... 15"
Bead-breaker power per roller .................... 1900 kg
Vertical bead breaker max. opening ................... 19"
Gear noise ................................................... dBA 85

15.1 Weight

ERGOLOCK.CB .............................................. 260 Kg
ERGOLOCK.CBFI ........................................... 266 Kg
ERGOLOCK.AD ............................................. 234 Kg
ERGOLOCK.ADFI .......................................... 240 Kg
ERGOLOCK.ST .............................................. 204 Kg
ERGOLOCK.STFI ........................................... 210 Kg

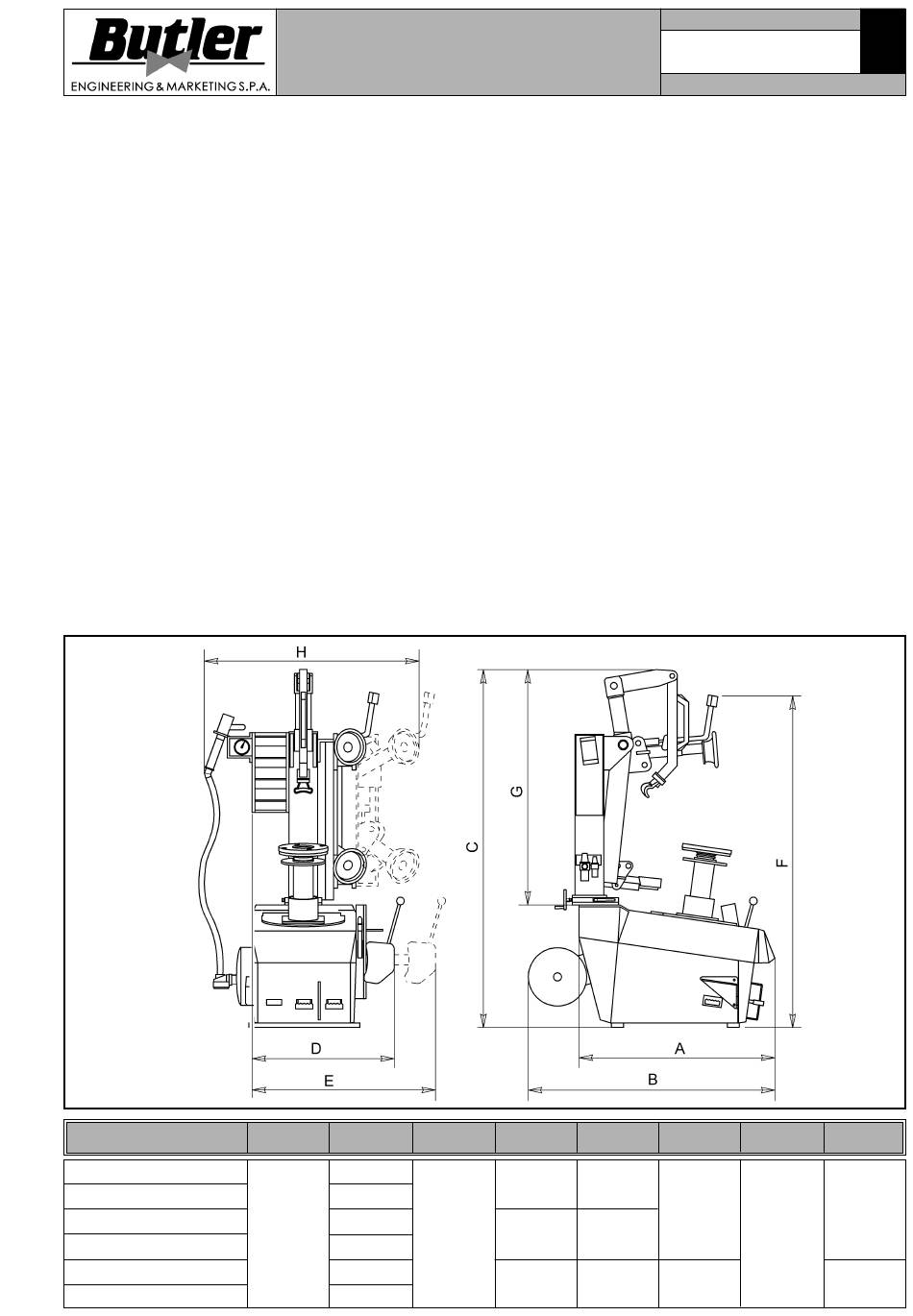

15.2 Dimensions

Fig. 49
Model

ERGOLOCK.CB

ERGOLOCK.CBFI

ERGOLOCK.AD

ERGOLOCK.ADFI

ERGOLOCK.ST

ERGOLOCK.STFI

INSTRUCTION, USE AND
MAINTENANCE MANUAL
200÷265V - 50/60 Hz
B (mm) C (mm)
A (mm)
/
1140
/
1100
1140
/
1140
D (mm) E (mm)
950 1450
1880 /
950 1450
7102-M004-0_B
Page 46 of 116
ERGOLOCK.CB - AD - ST
F (mm) G (mm)
1650
1360
/
/
GB
H (mm)
1530
/
