10 Electrical connections

Consult the diagrams on page 90 - 93.

10.1 Power supply, actuator

Connect the actuator unit to the power supply (12 Volt) (POWER).
Install a main switch in the positive wire.
Red = +, Positive
Blue = -, Negative

10.2 Start in gear protection

Start in gear protection prevents the engine from being started when
the gearbox is (still) engaged.

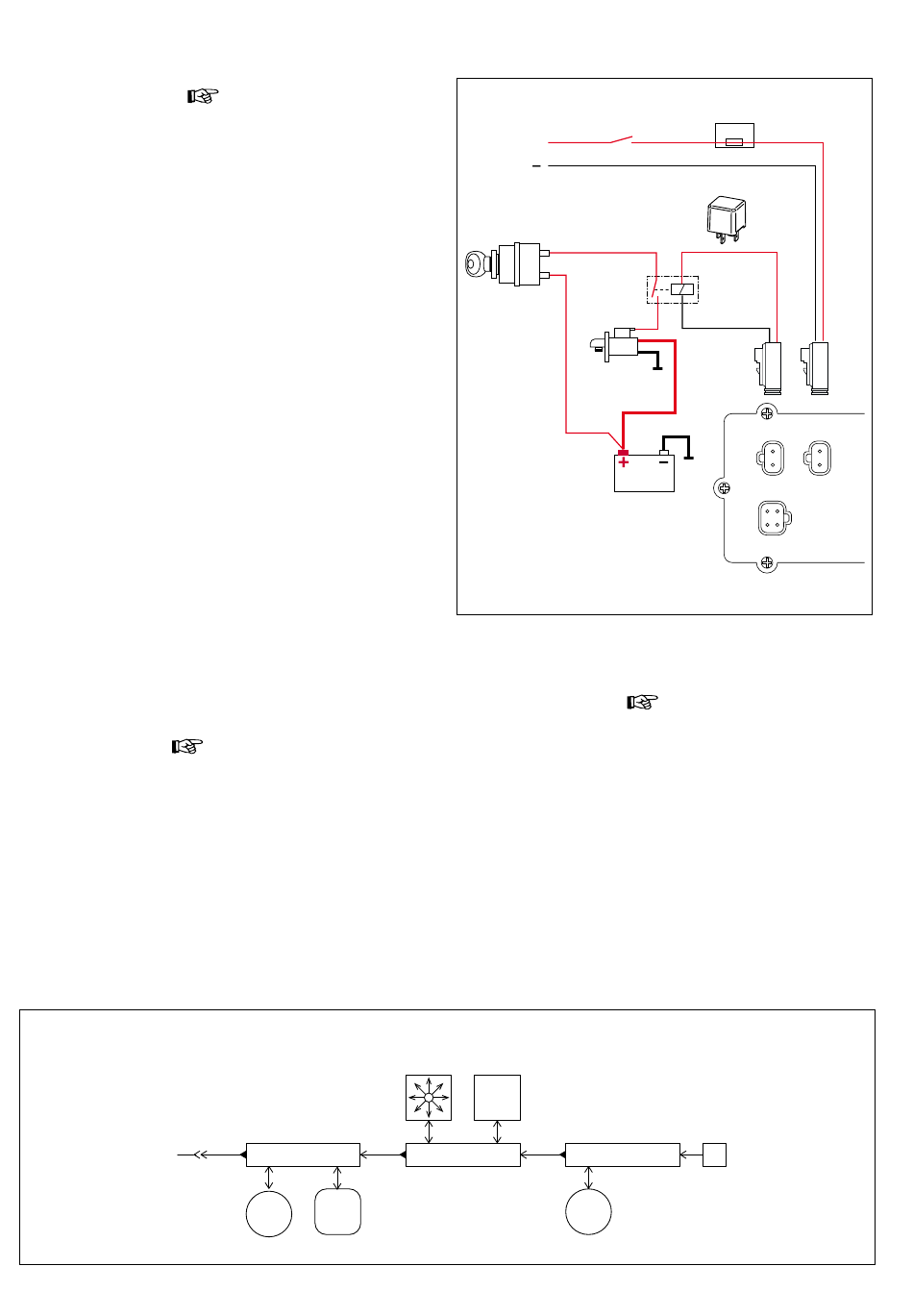

• Connect a relay to the S.LOCK connection and to the start circuit
of the engine as per diagram.

10.3 CAN bus connection

Pay attention to the block diagram below how to connect the parts
of the system to each other.
• Keep the cable lengths as short as possible,
• Install the system length-wise over the vessel,
• Don't make any loops.
Any of the 3 connections of the hubs are equal in function, therefore
the sequence of the plugs on the hub is not important.
