ELECTRIC CONNECTIONS
POINT A

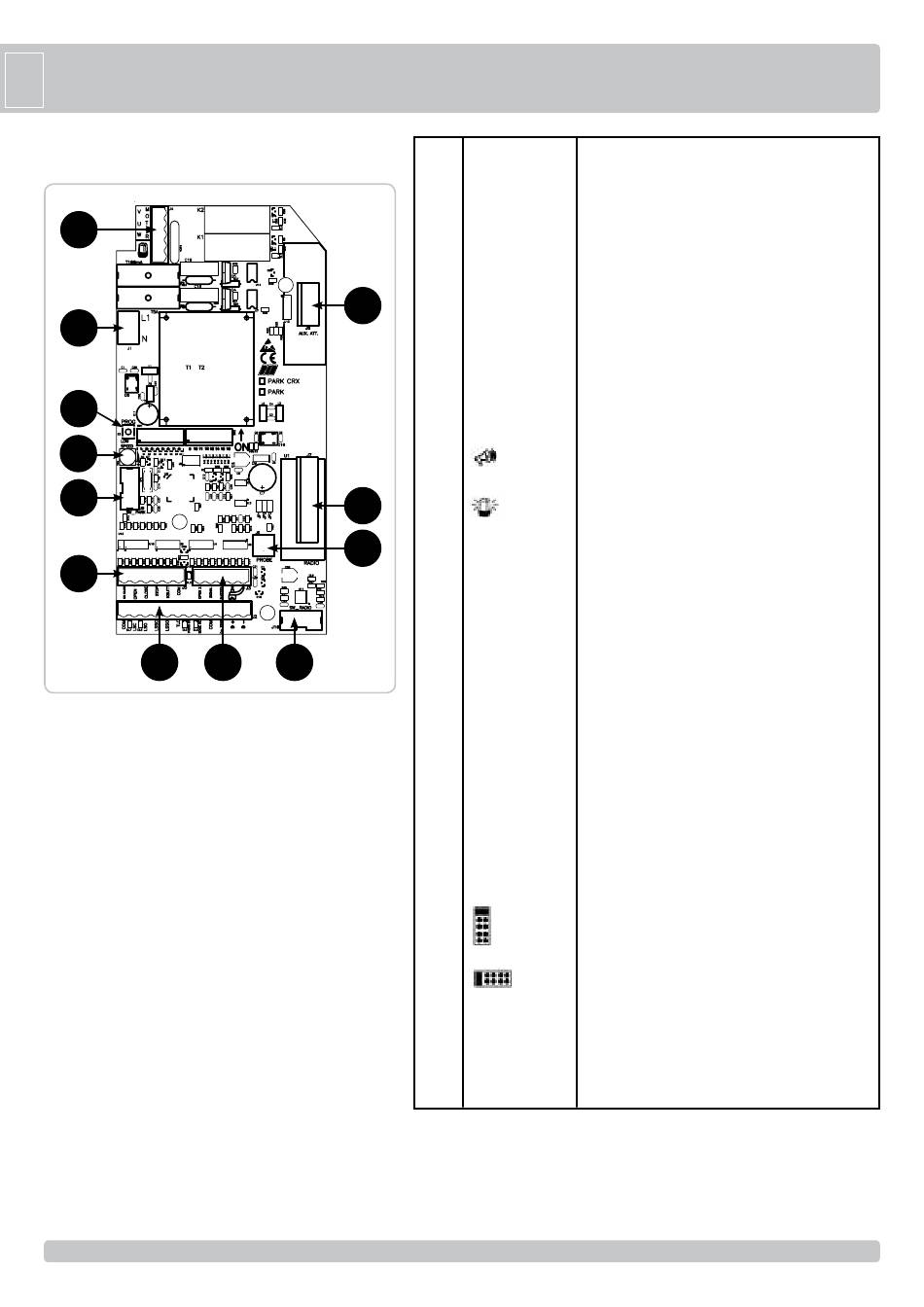

- CONTROL PANEL FEATURES

J4
J1
S3
TR2
J9
J5
J2
J8
J7
J6
J3
J10
L-N Main power supply 230Vac 50/60Hz upon request)
J1
COM Common contact
J2
LSC Closing limit switch contact (NC)
LSO Opening limit switch contact (NC)
LSSC Closing slowing down limit switch contact (NO)
LSSO Opening slowing down limit switch contact (NO)
TLC Vehicle presence signal (NO) (only when switched to
PARK mode)
PHOT. NC Photocells contact (NC)
EDGE NC Safety strip contact (NC)
COM Common contact
D+ TEST Safety strip self-test power supply +12Vdc 500mA
max
D+ Accessories power supply +12Vdc 500mA max
D- Accessories power supply -12Vdc 500mA max
OPEN 2 Barrier opening button 2 contact (NO) (only when
J3
switched to PARK mode)
SIGNAL Barrier open signal 12Vdc
Buzzer - Acoustic signal connection (12Vdc max 200
mA)
AERIAL Radio antenna
Blinker (max 40W)
J4
U - MOTOR Motor common connection
V-W - MOTOR Motor inverters and condenser connection
OK CLOSE Immediate closure command contact (only when
J5
switched to PARK mode)
OPEN 1 Open1 button contact (NO)
CLOSE Close button contact (NO)
STOP Stop button contact (NC)
K BUTT. Single pulse button (NO)
COM Common contact (common line for all the commands
and safety inputs)
PROBE Heating probe connection terminal block (code
J6
ACG4666 optional)
RADIO Built in radio module (only CRX) or connector for radio
J7
receiver RIB, 12Vdc supply
AUX. ATT. Card 1 relay connector (code ACQ9080) for
J8
management of courtesy light or boom arm locking
magnet
Card 3 relay connector (code ACQ9081) for
management of courtesy light or boom arm locking
magnet and traffic lights.
SW PARK DO NOT TOUCH THE JUMPER!
J9
IF REMOVED THE OPERATOR DOES NOT
FUNCTION!
SW RADIO DO NOT TOUCH THE JUMPER!
J10
IF REMOVED THE RADIO SYSTEM DOES NOT
FUNCTION!
PROG. Programming button
S3
TR2 TRIMMER LOW Slow closure speed electronic regulator
SPEED
28
28
PARK code BC07062
PARK CRX code BC07063
