8 INSTALLING

8.1 FIXED TYPE

8.1.1 Installing the fixed type

Securely install the left and right mounting frames with M12 screws (4 screws for 3P and 6 screws for 4P).
40-50 Nm
M12
<Torque>
Frame
Surface

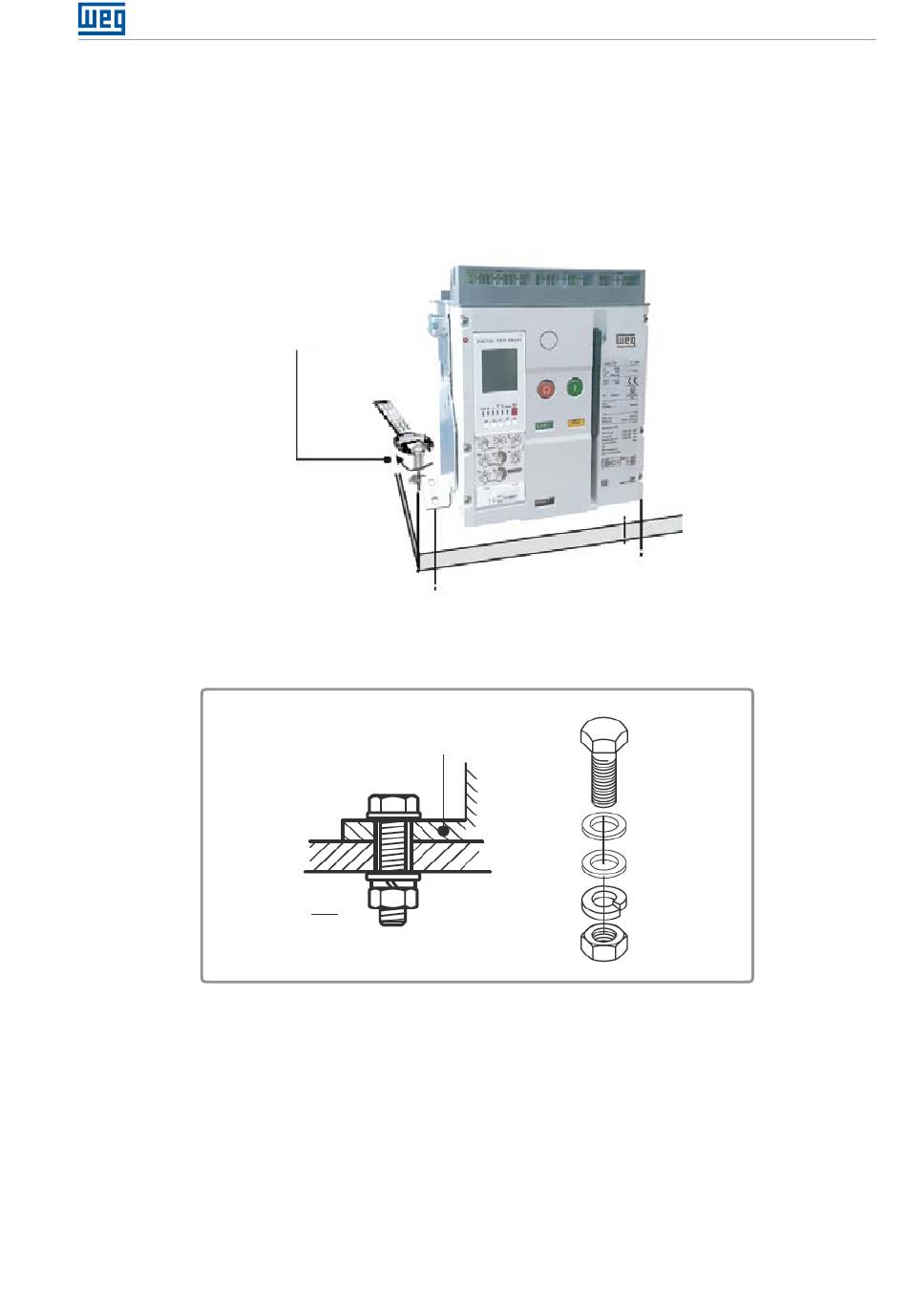

Figure 8.1:
Figure 8.2:
