Supply cables for industrial electrical outlets
Electrical socket Plug Standard and
designation
1 NEMA 14-30
2 NEMA 14-50
3 NEMA 6-30
4 NEMA 6-50
5 IEC 60309-2
CEE 400 V/16 A
6 h
6 IEC 60309-2
CEE 400 V/32 A
6 h
Supply cables for domestic electrical outlets
If there is no industrial electrical outlet available,
the supply cables listed below can also be used for
charging at a reduced charging power.
e In some countries, e.g. Abu Dhabi, Israel,
1)
Singapore and India , charging using domestic
electrical outlets is prohibited.
Electrical Plug Standard and
socket designation
NEMA 5-15
Type B

Changing the supply cable

Electric shock
DANGER
Risk of serious or fatal injury from electric shock.
e Disconnect the supply cable from the electrical
socket before changing.
e Only change cables in a dry environment.
e Use only cables approved by Porsche.
1)
In some countries, e.g. Norway , the supply cable
must only be changed by a qualified electrician.
Porsche recommends that you use a certified
Porsche service partner.
1) Time of printing.
f Please see chapter "Scope of supply" on page 8.
f Please see chapter "Selecting a supply cable" on
page 8.
1) Time of printing. Further information is available from an
authorized Porsche dealer or your local electricity
supplier. Porsche recommends an authorized Porsche
dealer, as they have trained technicians and the
necessary parts and tools.
Operating instructions

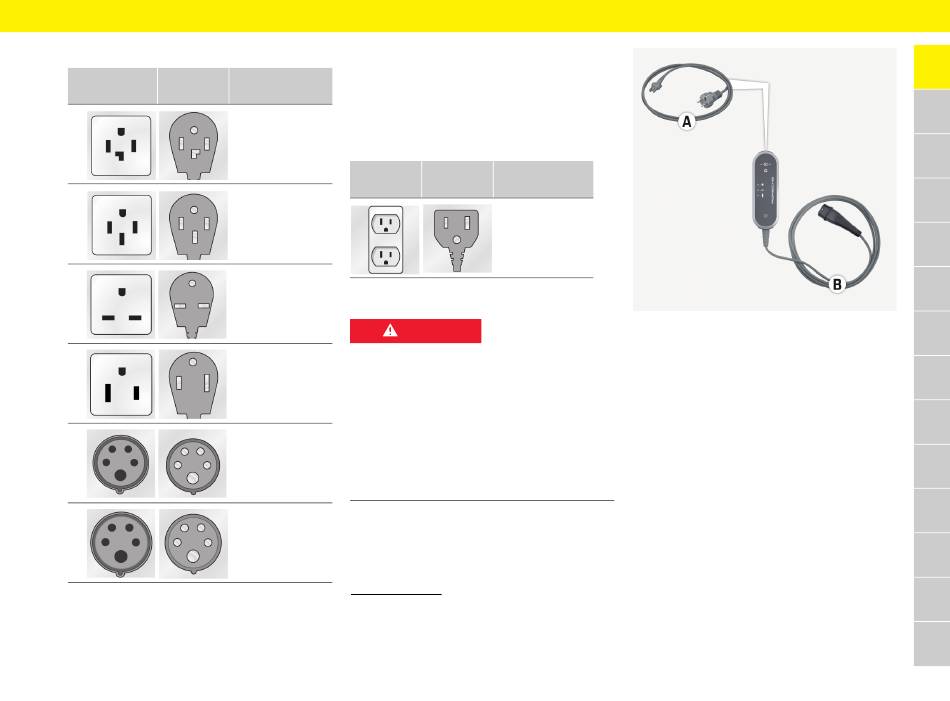

Fig. 6: Connections on the control unit
The supply cable A is removed and plugged in at the
top of the control unit.
