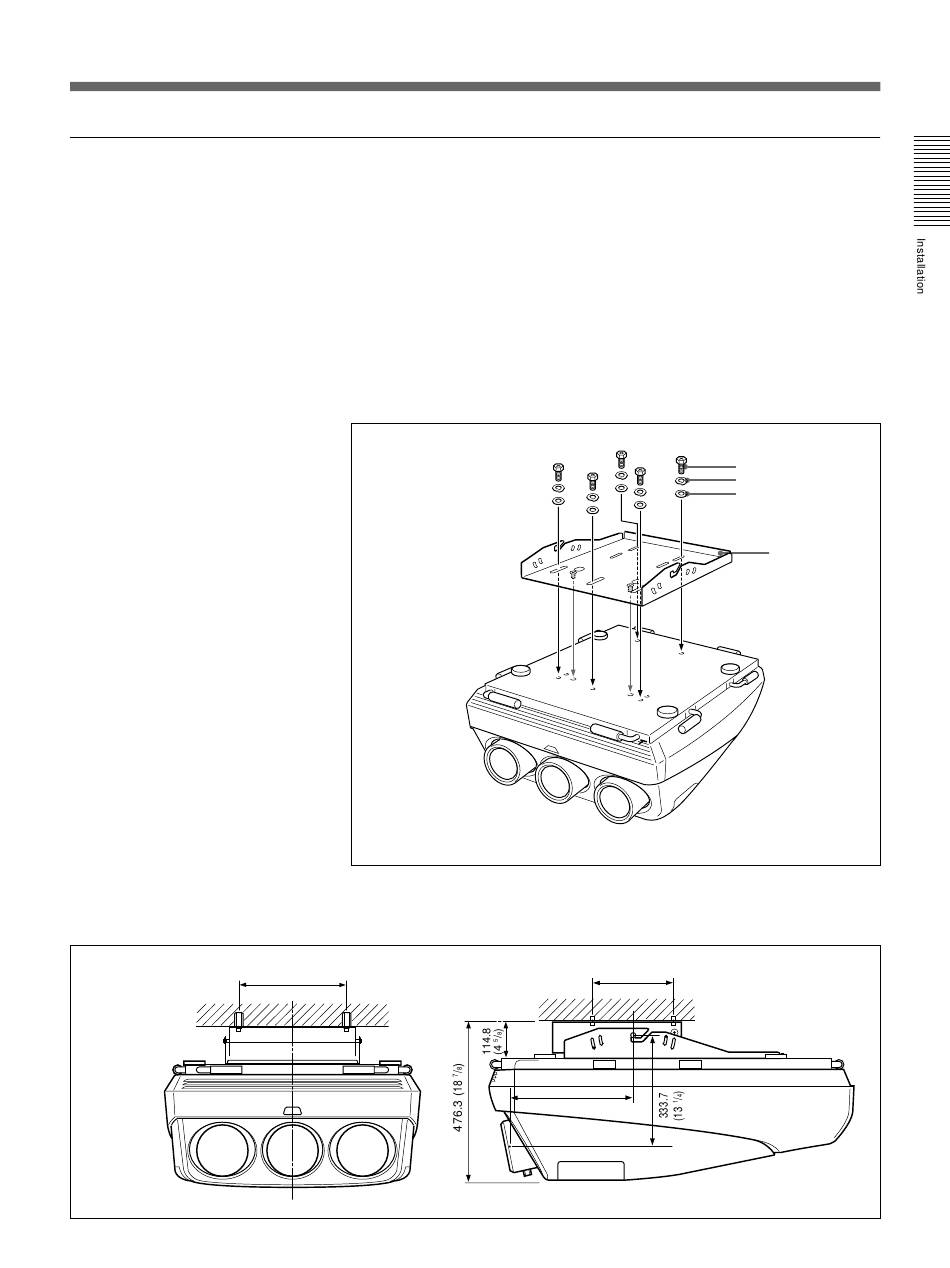

Attaching the PSS-90 Projector Suspension Support
Installation dimensions
Attach the projector mounting bracket to the bottom surface of the
projector.
Use five each of the M8×20 bolts, M8 washers and spring washers, all of
which are supplied with the PSS-90.
1
Align the two projections on the projector mounting bracket with the
receptacles on the bottom surface of the projector.
2
Fasten the five bolts and washers to fix the mounting bracket to the
five holes for attaching the PSS-90 on the bottom surface of the
projector.
For attaching the PSS-90 to the ceiling, refer to the Installation Manual of the
PSS-90 Projector Suspension Support.
254 (10)
254 (10)
415.8 (16 3 / )
8
M8×20 bolt
Spring washer
M8 washer
Projector
mounting
bracket
Unit: mm (inches)
15
Installation (GB)
