PC Board Base

• Pc Boards can be easily damaged by static electricity. If a person charged
with static electricity handles a PCB, electronic components on the board
can be damaged.
Before handling a PCB, touch an earthed metal surface to release the
elctrostatic charge from the body.
The Game PC Board Asembly comprises of System 10 PCB, MGEX IO PCB and
MEM(N) PCB.
1. Switch the power to the game OFF.
2. Unlock and open the Maintenance Door.
3. Remove 3off pozi head screws (M4x20) and remove the PC Board Cover.

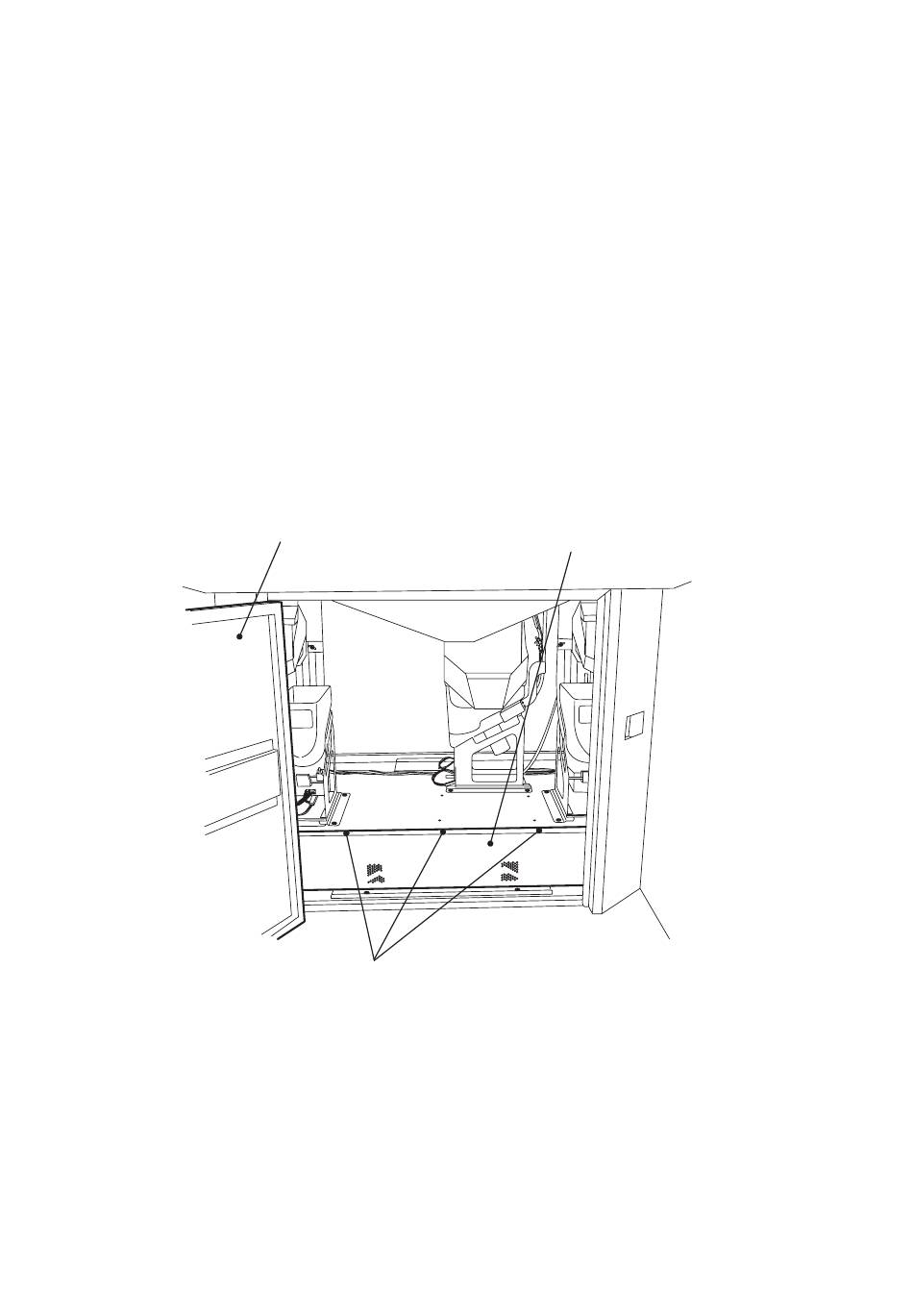

Maintenance door
Poxi head screws (M4 x 20)
Page 100
PC board cover
