Hopper Section - NAMCO PAC-MAN BALL Manual Del Usuario

Hopper Section

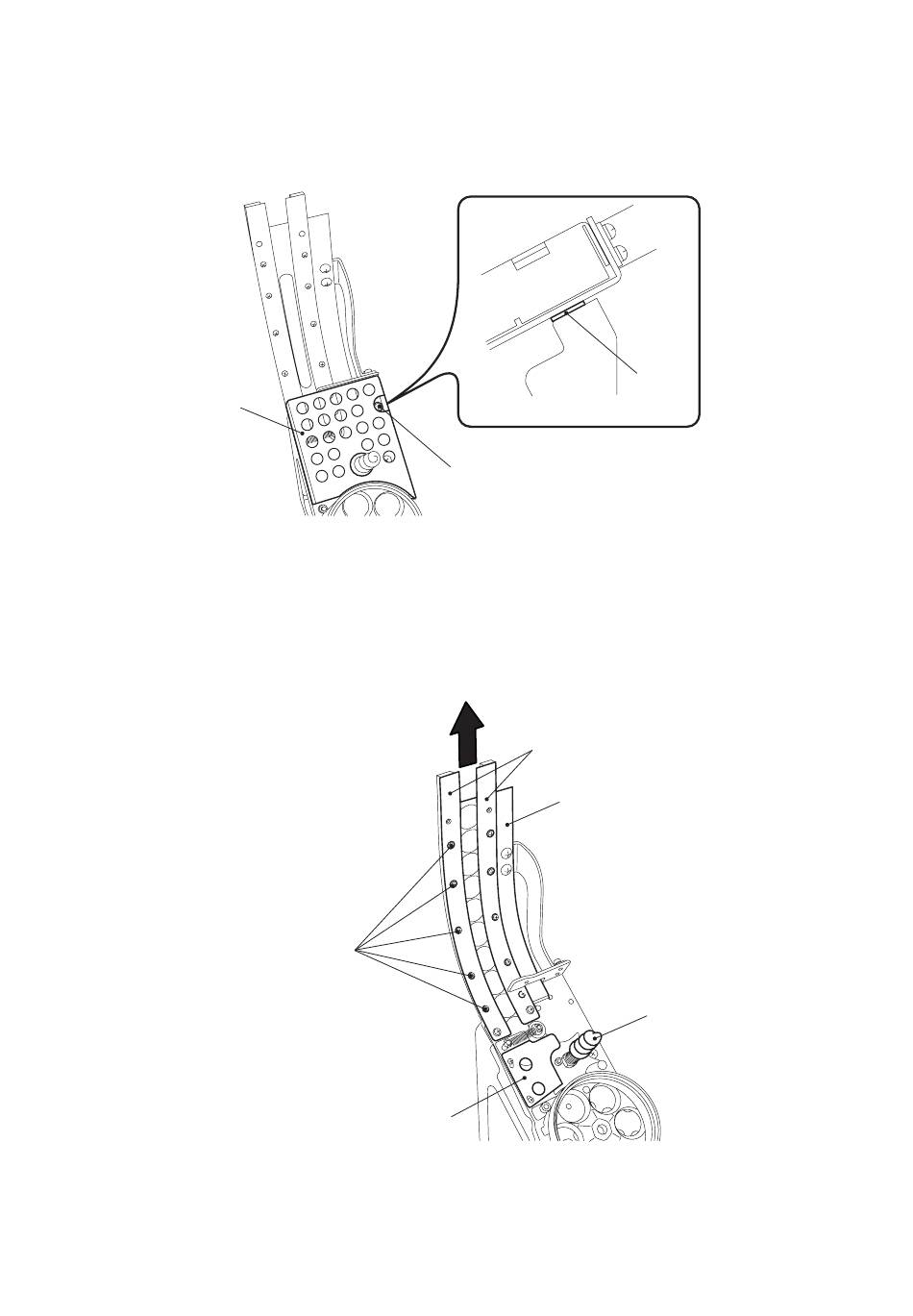

1. Remove 1off pozi head screw (M4x10), with flat and spring washer, and
remove the cover.
Take care not to lose the washers.
Cover
2. Loosen 10 pozi head screws (M3x10), with flat and spring washers, on the
two edge plates.
Do not remove the screws.
3. Widen the gap between the Edge Plates and Back Plate, and push jammed
coins with a finger in the direction of the arrow.
Pozi head screws
(M3 x 10)
(with spring washers
and flat washers)
4. After coins have been removed, re-assemble in reverse order.
•
Do not remove the Coin Cover
• Do not apply excessive force to the Agitator Rod.
Pozi head screw (M4 x 10)
(with flat washer and spring washer)
Edge plates
Back plate
Coin cover
Page 85
Washer
Agitator rod
