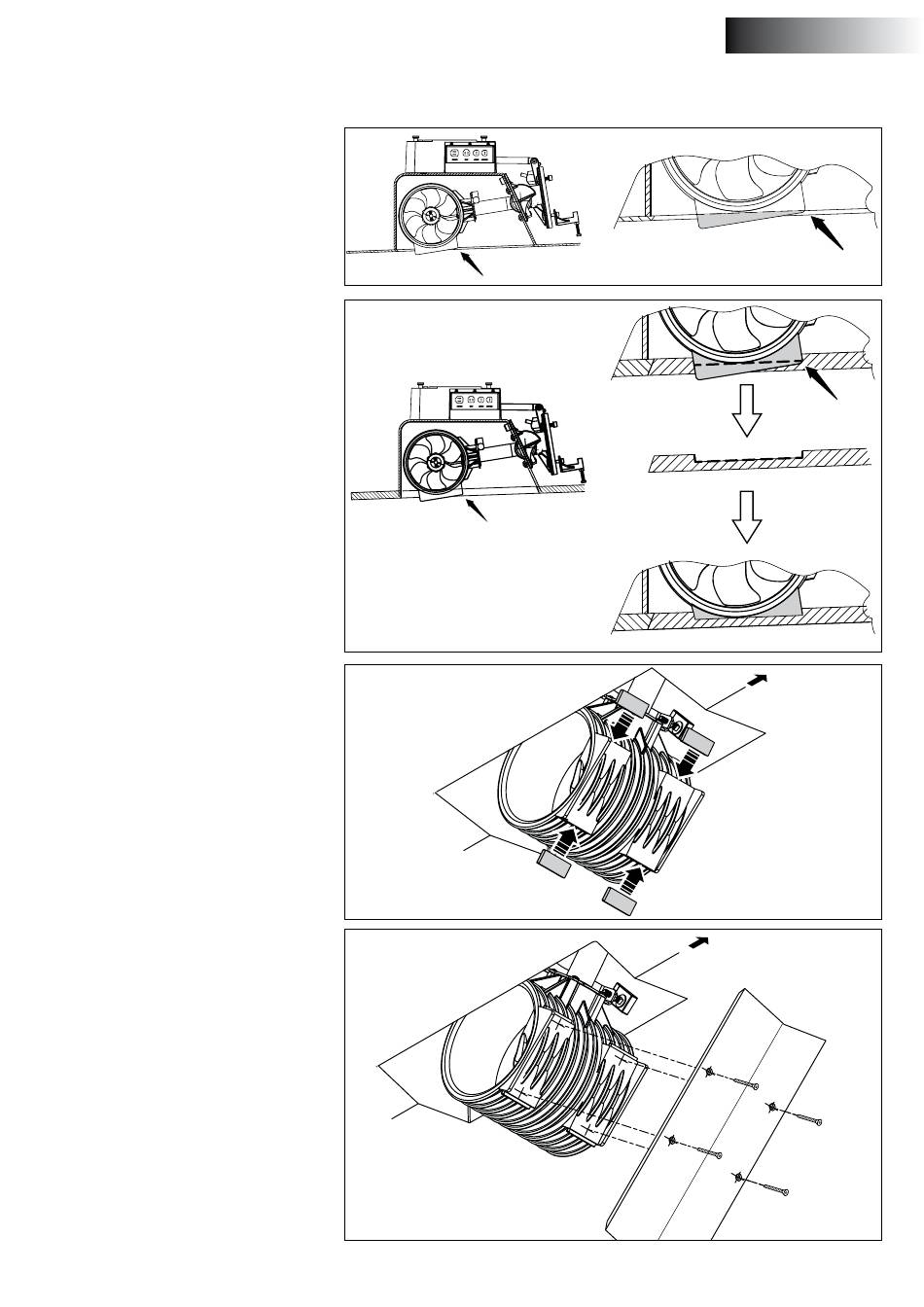

4 .5 Fitting the hatch, ø 150 mm and ø 185 mm
• Lower the tunnel enough so that the cor-
ner 'P' is level to the inside of the hull.
• On both flanges of the tunnel, mark out
which part of the flanges protrude under-
neath the ship, and saw these sections off.
• If it is not possible to raise the tunnel so far
that 'P' is equal to the inside, then create a
room in the hatch.
• Place the 4 assembly blocks provided in
the tunnel.
The screws for attaching the hatch to the
tunnel must enter the tunnel at the loca-
tion where the assembly blocks have been
placed.
• Determine in the hatch where the 4 holes
for these screws should be made.
• Drill these holes in the hatch and counter-
sink them so that the heads of the screws
do not extrude.
