Final assembly

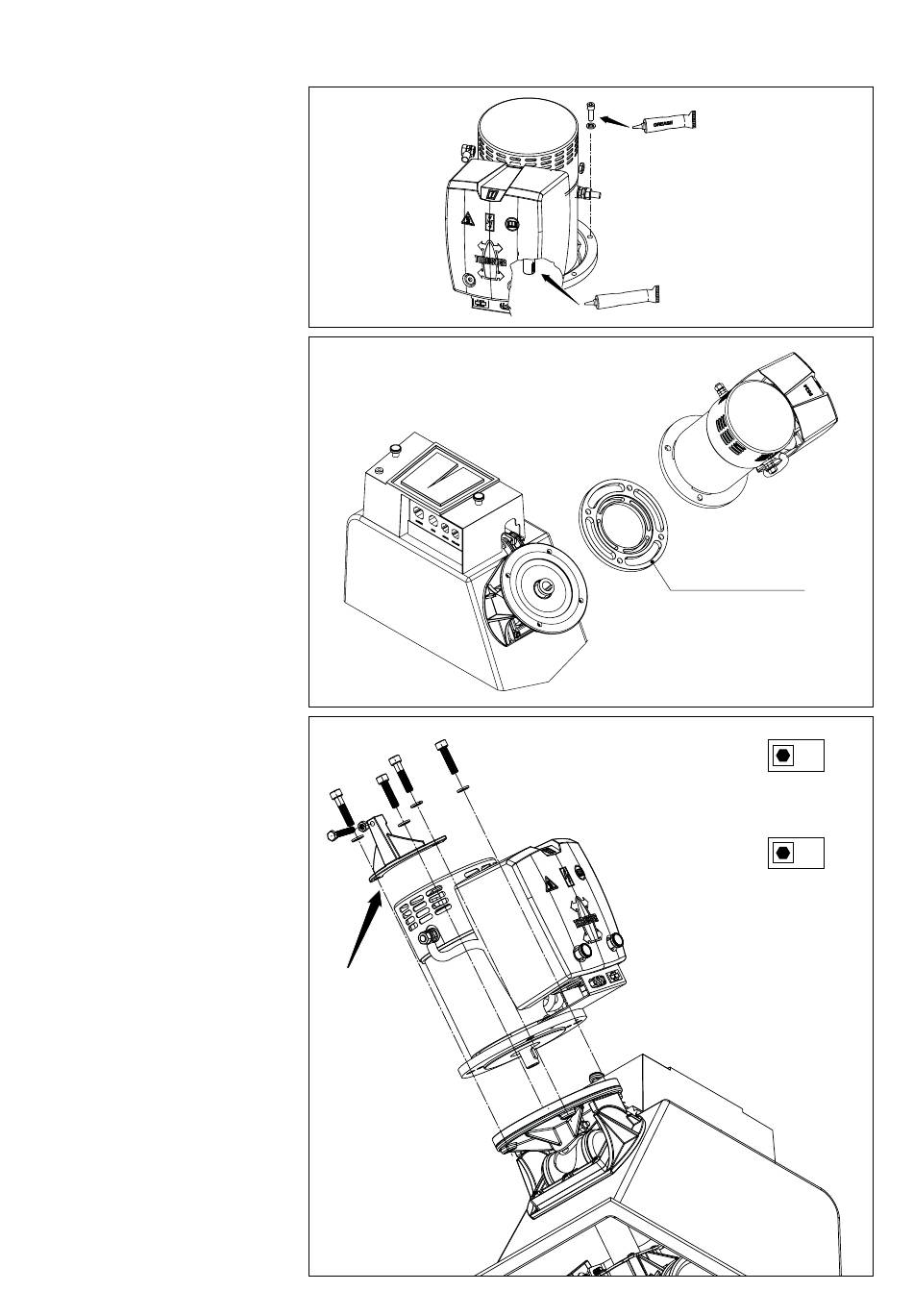

• Grease the shaft of the electric motor with
assembly compound, such as Molykote®
G-n plus.
• Grease the screw thread of the bolts with
outboard gear grease.
• Position the motor with the spacer *) on
the flange.
If necessary turn the motor shaft so as to
be able to slide it into the hollow shaft.
*) Only: 75 kgf, 95 kgf & 125 kgf.
• Fit the top 2 bolts.
• Place the support (S) on the bottom of the
motor flange and then attach the bottom
2 bolts.
Note 1
The shape of the support may differ from
the one pictured it depends on the type
of thruster.
Note 2
A support is not provided for the 160 kg
thruster.
• Check, inside the tunnel, by turning the
propellor by hand; it should rotate easily
and the electric motor shaft should also
turn.
40
020584.01
S
Outboard Gear
Grease
Molykote® G-n plus
75 kgf,
Only:
95 kgf,
125 kgf
55 kgf:
M8
60 kgf:
12 - 15 Nm
160 kgf:
75 kgf:
M10
95 kgf:
20 - 25 Nm
125 kgf:
