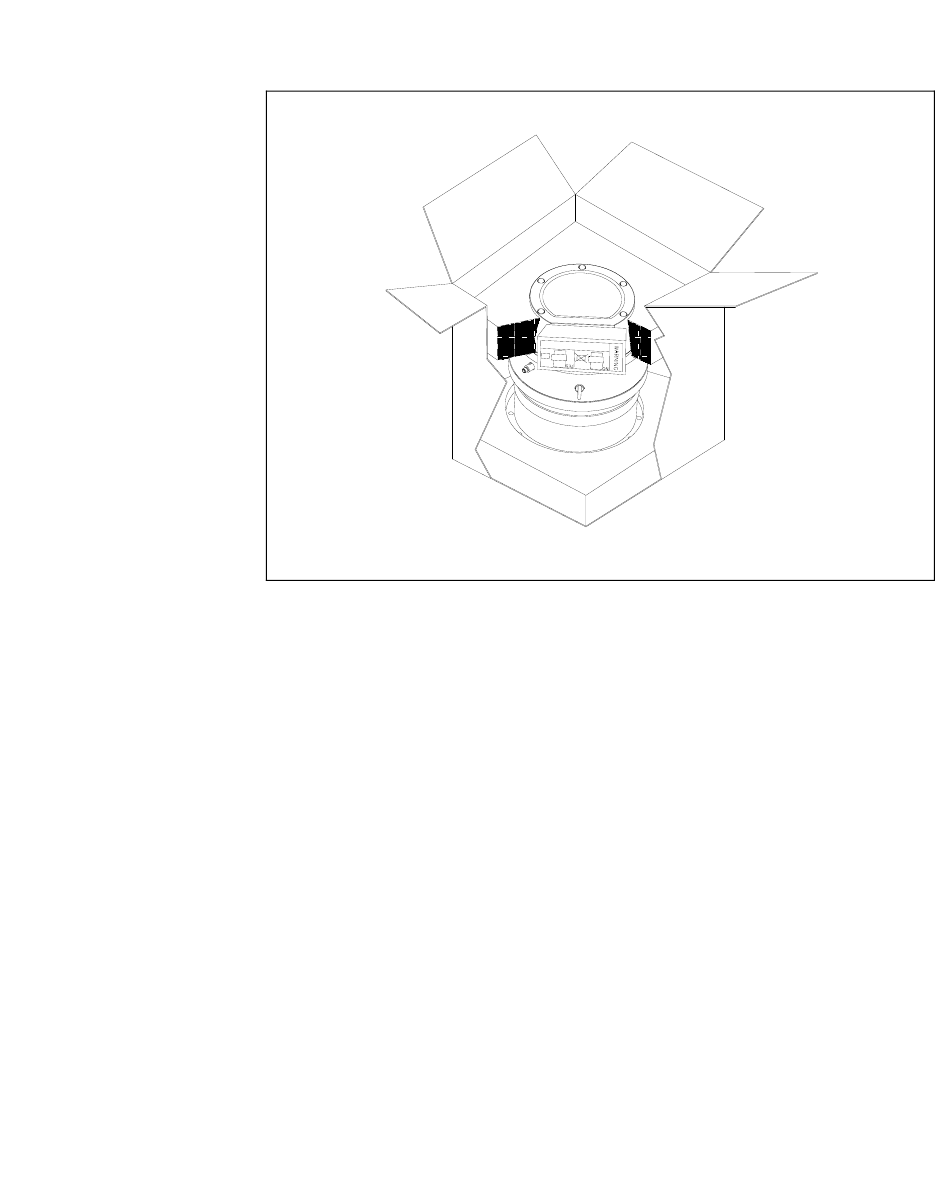

Figure 1
The Turbo-V 2K-G package includes:
1
2
3
4
5
6
7
8
Turbo-V 2K-G Pumping System User Manual / 87-900-968-01 (G)
pump with integrated controller
inlet screen (mounted)
this instruction manual on CD-ROM
accessories bag:
15 pin mating connector IP 54 for "REMOTE I/O" connector with
all the interconnections necessary to start the pump.
9 pin mating connector IP-54 for "SERIAL" connector to be used
for serial connection
9 pin mating connector for "Network" MoniTorr
Retaining bracket to retain the power cable (mounted)
Instructions for Use
Preparation for Installation
16
