• LEAD TYPE: used to select either 5 LEADS or 3 LEADS.
• SWEEP
Available options for ECG SWEEP are 12.5, 25.0, and 50.0 mm/s.
• ST ANALYSIS
Pick this item to access ST ANALYSIS menu, the detailed information about the menu is to be discussed in
the following section.
• ARR ANALYSIS
Pick this item to access ARR ANALYSIS menu, the detailed information about the menu is to be discussed
in the following section.
• OTHER SETUP
Pick this item to access ECG SETUP menu as shown below:

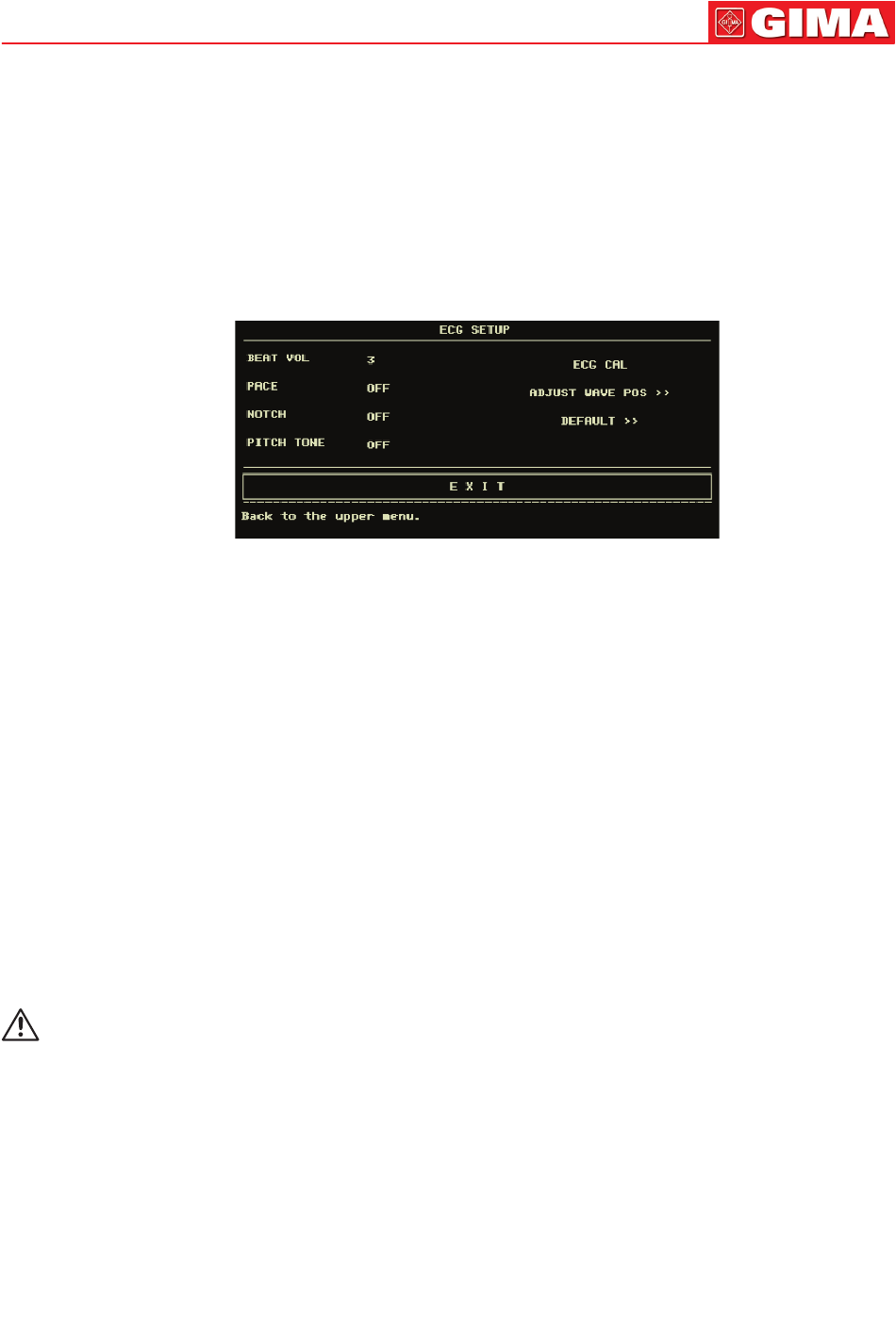

Figure 11-7 ECG Setup Menu
In the sub-menu, following functions are available:
• BEAT VOL
8 selections are available: OFF, 1~7. 7 indicates maximum volume. OFF indicates no sound.
• PACE
"ON" detected signal will be marked by a "|" above the ECG waveform
"OFF" for non-pacemaking patient
Note
• If monitoring a patient with the pacemaker, set "PACE" to On. If monitoring a patient without pacemaker,
set "PACE" to Off.
• If "PACE" is on, the system will not perform some types of ARR analysis. For detailed information, please
refer to the section: ARR ALARM. In the table, the ARR type marked by All types applies to the analysis in
all situations, marked by Non-paced applies only to the analysis in the situation when the patient does not
use pacemaker.
• NOTCH:ON/OFF.
• PITCH TONE:ON/OFF.
• ECG CAL: pick this item to start calibrating ECG. The method to end CAL: re-select the CAL key in the
menu or re-select the lead name on the screen.
• DEFAULT: pick this item to access the ECG DEFAULT CONFIG dialog box, in which the user may select
whether the FACTORY DEFAULT CONFIG or the USER DEFAULT CONFIG is to be used. After selecting
any of the items and exiting the dialog box, the system will pop up the dialog box asking for the user's
confirmation.
Warning
For pacemaker patient, the pacing impulse analysis function must be switched on, otherwise, the pacing
impulse may be counted as normal QRS complex, which results in failure of "ECG LOST" error detection.
Do not rely entirely upon rate meter alarms. Keep pacemaker patients under close surveillance.
Note
• When calibrating ,Please set the filter way to "Diagnosis".
• For monitor with ST segment & Arrhythmia analysis software, refer to ST Segment Monitoring and
Arrhythmia Analysis for details.
• When Pacer Switch is On, the Arrhythmia events related to PVCs will not be monitored. At the same time,
the ST analysis will not be performed either.
