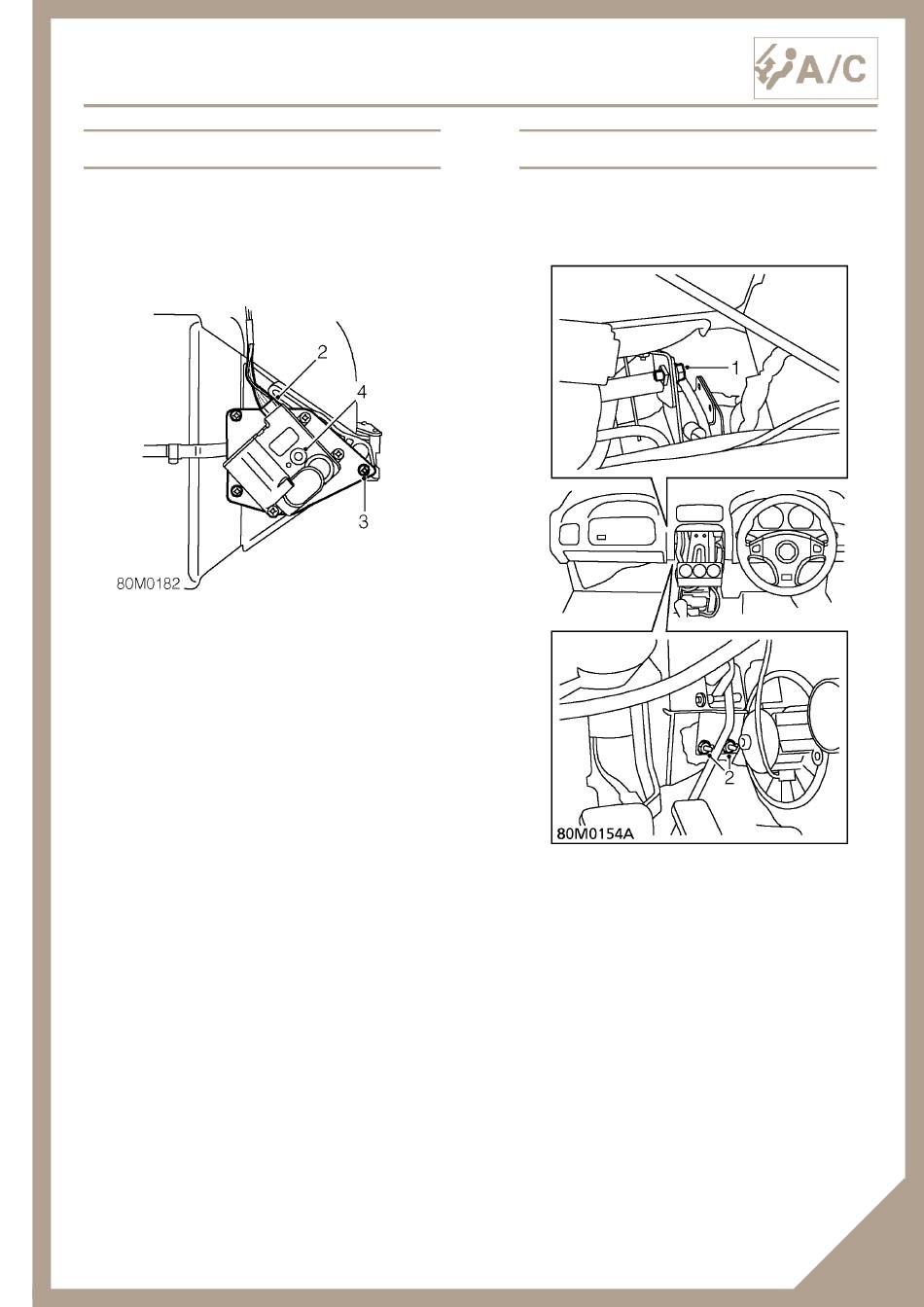

RECIRCULATION SERVO MOTOR
$% 80.20.10
Remove
1. Remove glovebox.
1. Remove glovebox.
+
GLOVEBOX, page 76-4-10.
2. Disconnect multiplug from servo motor.
2. Disconnect multiplug from servo motor.
3. Remove 3 screws securing servo motor to
3. Remove 3 screws securing servo motor to
evaporator casing.
4. Remove servo motor.
4. Remove servo motor.
Refit
1. Position servo motor and engage output crank to
1. Position servo motor and engage output crank to
re-circulation flap lever.
2. Secure servo motor with screws.
2. Secure servo motor with screws.
3. Connect multiplug.
3. Connect multiplug.
4. Fit glovebox.
4. Fit glovebox.
+
GLOVEBOX, page 76-4-10.
HEATING & VENTILATION
HEATER BLOWER
$% 80.20.12
Remove
1. Remove bolt securing throttle pedal bracket to pedal
1. Remove bolt securing throttle pedal bracket to pedal
box.
2. Remove 2 nuts securing throttle pedal bracket to
2. Remove 2 nuts securing throttle pedal bracket to
bulkhead and position throttle pedal assembly aside.
3. Remove heater duct.
3. Remove heater duct.
80-15
REPAIRS
