MSA Remote Connect/Disconnect (RCD®) System
National standards and state, provincial and federal laws require the user to be trained before using this product. Use this manual as part
of a user safety training program that is appropriate for the user's occupation. These instructions must be provided to users before use of
the product and retained for ready reference by the user. The user must read, and understand (or have explained), and heed all instructions,
labels, markings and warnings supplied with this product and with those products intended for use in association with it. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH.
Sistema de conexión/desconexión remoto
las normas nacionales y las leyes estatales, provinciales y federales exigen que se capacite al usuario antes de usar este producto. Utilice este
manual como parte de un programa de capacitación sobre normas de seguridad que corresponda a las tareas desempeñadas por el usuario.
estas instrucciones se deben proveer a los usuarios antes de usar el producto y se deben conservar para que el usuario pueda consultarlas
rápidamente. el usuario debe leer, comprender (o solicitar que se le expliquen) y seguir todas las instrucciones, etiquetas, marcas y advertencias
que acompañan a este producto y a otros productos que se deban usar conjuntamente con el mismo. el INCUMplIMIeNTO De lO aNTeRIOR
pODRÍa pROVOCaR lesIONes GRaVes O la MUeRTe.
Dispositif d'accrochage/décrochage à distance
les normes nationales ainsi que les lois d'État, fédérales et provinciales exigent que l'utilisateur reçoive la formation nécessaire avant d'utiliser
ce produit. Utiliser ce manuel dans le cadre d'un programme de formation sur la sécurité correspondant à la profession de l'utilisateur.
Ces instructions doivent être fournies aux utilisateurs avant qu'ils ne commencent à utiliser le produit, et laissées à leur disposition pour
consultation future. l'utilisateur doit lire ou se faire expliquer les instructions, les étiquettes, les notations et les avertissements relatifs à
ce produit et aux produits associés; il doit bien les comprendre et s'y conformer. TOUTe NÉGlIGeNCe À Ce sUJeT pRÉseNTe UN RIsQUe
De BlessURe GRaVe OU UN DaNGeR De MORT.
For More Information, call 1-800-MSA-2222 or Visit Our Website at www.MSAsafety.com
CRANBERRY TWP., PENNSYLVANIA, U.S.A. 16066
TWP 219 (L) Rev. 6
User Instructions
! WARNING
!
(RCD®)
Instrucciones para el usuario
!
ADVERTENCIA
Instructions d'utilisation
(RCD®)
!
AVERTISSEMENT
© MSA 2012
Model/Modelo/Modèle
Prnt. Spec. 10000005389 (R)
Mat. R622333
Doc. R622333

Publicidad

Tabla de contenido
loading

Resumen de contenidos para MSA RCD

  • Página 1 TOUTe NÉGlIGeNCe À Ce sUJeT pRÉseNTe UN RIsQUe De BlessURe GRaVe OU UN DaNGeR De MORT. For More Information, call 1-800-MSA-2222 or Visit Our Website at www.MSAsafety.com CRANBERRY TWP., PENNSYLVANIA, U.S.A. 16066 TWP 219 (L) Rev.

  • Página 2: Sistema De Conexión/Desconexión Remoto (Rcd®)

    Partly due to the difficulty of connecting to and disconnecting from overhead anchorages, workers often do not use a PFAS when performing tasks at heights. This is particularly true for work of short duration in places that are infrequently accessed and the heights are less than 20 ft (6.1 m). You will later learn that the RCD System can be used effectively on anchorages up to 20 ft overhead.

  • Página 3: Propósito Del Sistema Rcd

    Standard and follow it carefully. PROPÓSITO DEL SISTEMA RCD La patente del sistema RCD está pendiente, y el sistema consta de un conjunto de herramientas que se usan de manera remota para: ● Instalar un PFAS portátil para proteger a la primera persona que sube y a la última que baja. Permitir que los trabajadores cuenten con seguridad de manera continua en alturas, al extender enormemente el alcance para instalar de manera remota un conector de anclaje y conectar un PFAS portátil en este.
  • Página 4 PFAS. ANCHORAGE CONNECTOR A component with means specifically intended for coupling the PFAS to an anchorage. The “STRAP” component of the RCD System is an anchorage connector of the choker type. LANYARD A component consisting of a flexible line of rope, wire rope or strap which generally has a connector at each end for connecting the body support (full body harness) to a fall arrester, energy absorber, anchorage connector or anchorage.
  • Página 5 (por ejemplo: construcción, ferrocarriles, servicios públicos, construcción naval, entre otros). Consulte con su director de seguridad, la agencia normativa o reguladora o con Msa para obtener información sobre la aplicabilidad de estos textos a sus aplicaciones.
  • Página 6 The RCD System is versatile, allowing use with a multitude of MSA fall protection products. While primarily designed for use with the Dyna-Lock® Backpacker Web Self-Retracting Lanyard, the RCD system can also be used with MSA Vertical Lifelines and other MSA Lanyard/Harness systems. Full user instructns for any of these MSA fall protection systems are supplied with the respective product.

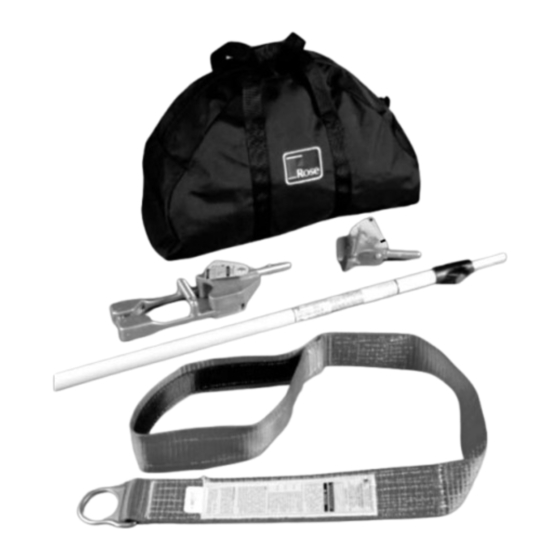

  • Página 7: Componentes Del Rcd

    10129597 Combination Connect/Disconnect Tool (Combination Tool) 507405 Tote Bag Note: When the basic RCD System is ordered under P/N 501443, the Tote Bag is included. All components (with the exception of the Pole) are packed in the Tote Bag. PRECAUCIÓN El sistema RCD de MSA está...
  • Página 8 Install the Strap around an anchorage Sistema básico RCD (N/P 501443) ● Connect a line with a MSA 36C-RCD or 36CS-RCD Snaphook to a remote D-ring (usually the D-ring on the Strap) Système RCD de base (Réf. 501443) or other suitable anchorage ●...

  • Página 9: Consideraciones Para La Selección Del Equipo

    The end of the inner extension member has a receptacle to accept the shanks of RCD System tools. In order for a tool to be securely held in place, its spring-loaded retainer pins must be aligned with and project through the tool retainer pin holes on the inner member of the Pole. Always be sure this condition exists when using tools.
  • Página 10 Never use the pole for any purpose other than those specified in this User Instruction. Never attempt to use the RCD system or its tools with a pole other than this pole, provided by Msa. The Pole may be oriented in any direction by the user in order to reach remote areas where appropriate anchorages are located.
  • Página 11 RCD System. The Strap is made of 3 in (76 mm) wide, flat webbing with a forged steel D-ring sewn into one end and a sewn loop on the other end. The Strap bears a label.

  • Página 12: Definiciones Importantes

    User Instructions  MSA Remote Connect/Disconnect System P/N R622333 WARNING anchorage selected for pFas must have a strength capable of sustaining static loads, applied in the directions permitted by the pFas, of at least: • 3,600 lbs (16 kN) when certification exists, or •...
  • Página 13 Si la courroie ne peut être protégée contre les conditions changeantes du milieu de travail (comme de la chaleur, des sources d’électricité, des produits chimiques et des forces mécaniques) pendant toute la période de temps où elle sera laissée en place, la remplacer immédiatement avec un connecteur d’ancrage approprié. Communiquer avec MSA pour obtenir de l’aide dans la sélection du connecteur d’ancrage approprié.
  • Página 14 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 WARNING Install a protective “softener” between the Strap and the anchorage whenever the Strap can be cut or abraded. Always install such softeners when the anchorage has any edge that could contact the Strap, which has a radius of 1/32 in (0.8 mm) or less.

  • Página 15: Instalación

    Nose like projection to pull the Strap D-ring through the strap loop during installation. For use in conjunction with 2 above. The Strap Tool has attached labels, copies of which are contained in Section 9. If the labels are damaged, illegible or absent, remove the tool from use and return it to MSA for relabeling and return.
  • Página 16 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 FIGURE 4/FIGURA 4/FIGURE 4 FIGURE 5/FIGURA 5/FIGURE 5 Strap Tool (P/N 506509)/Herramienta de correa (N/P 506509)/ Combination Tool (P/N 10129597)/Herramienta combinada (N/P 10129597)/ Outil de la courroie (Réf. 506509) Outil combiné (Réf. 10129597) 1.
  • Página 17 COMBINATION TOOL The purpose of the Combination Tool is to perform the dual functions of connection of the MSA 36C-RCD or 36CS-RCD snaphooks to a remote D-ring, as well as disconnection of these snaphooks from a remote D-ring. The Combination Tool is cast aluminum and has slots with Delrin guides located in spring loaded arms that allow it to capture and open the MSA 36C-RCD or 36CS-RCD snaphooks.
  • Página 18 DE CAÍDAS DE MSA El uso principal del sistema RCD es instalar los conectores de anclaje ubicados por encima de la cabeza y conectarlos con el gancho de seguridad al instalar un PFAS portátil. Antes de que el sistema RCD estuviera disponible, con frecuencia era necesario que los trabajadores treparan para conectar un PFAS antes de poder usar ese sistema. El denominado “primer trabajador en subir”...

  • Página 19: Evaluación Y Entrenamiento En El Sitio De Trabajo

    User Instructions  MSA Remote Connect/Disconnect System P/N R622333 WARNING Before attempting to use the RCD system, the owner of the system (usually the employer of the at-risk worker) must analyze the workplace the provide training as is generally described in section 6.1. CAUTION Federal and state laws require that workplace hazards of falling, providing personnel access to and retrieval from hazardous spaces and performing rescue and evacuation operations be identified, evaluated and controlled.

  • Página 20: Evaluación Del Sitio De Trabajo

    Placed in context with this overview, the RCD System falls into the latter category. When properly applied within its limits, it provides a useful set of tools and techniques for reducing exposures which cannot otherwise be reasonably eliminated or prevented. To use it successfully and properly, however, is not automatic. It takes technical observations, organization of the facts, analysis, good reasoning, training and cautious implementation to use the RCD System for its intended purposes and within its limitations.
  • Página 21 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 Identify work which must be performed at heights and in other spaces which entails hazards associated with falling, access, retrieval, rescue and evacuation. If it is determined to be infeasible to provide permanent means of fall prevention for worker movement to, from, at and within such heights and spaces under normal and emergency conditions, then it is appropriate to consider use of Equipment.
  • Página 22 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 □ all equipment forming the connecting segment from the worker’s harness to anchorage (“connecting subsystem” in the language of ANSI Z359.1) which will satisfactorily limit total fall distance and allow for dynamic elongation and activation distance of the connecting subsystem □...

  • Página 23: Entrenamiento En El Sitio De Trabajo

    FORMATION SUR LE LIEU DE TRAVAIL Avant de choisir et d’utiliser un dispositif antichute personnel, l’équipement pour effectuer un sauvetage, un retrait ou une évacuation ou pour entrer ou sortir d’un espace (y compris le système RCD qui peut être utilisé pour accrocher et décrocher un tel équipement), une personne qualifiée doit former les travailleurs exposés aux risques selon les facteurs indiqués ci-dessous.

  • Página 24: Instalación De La Correa

    Can the anchorage connector be installed using a preferred and perhaps safer and/or more efficient method such as a personnel lift? If anchorage connectors have been previously installed in fall hazard zones where the worker must go, Strap installation may be eliminated. The RCD System user can proceed to install the vertical lifeline or PFAS lanyard.

  • Página 25: Conecte La Herramienta De Correa A La Vara

    Toujours s’assurer que cette condition est remplie avant d’utiliser l’outil. MISE EN GARDE Toujours s’assurer que les outils du système RCD sont solidement fixés et retenus par le montant intérieur de la tige télescopique; les deux goupilles de retenue de l’outil doivent ressortir des trous d’insertion pratiqués sur le montant intérieur de la tige télescopique.

  • Página 26: Prepare La Correa Para La Instalación

    User Instructions  MSA Remote Connect/Disconnect System P/N R622333 CAUTION To prevent uncontrolled inward or outward movement of the pole inner extension member, always grip it before depressing the extension latch button. This is particularly important if one of the tools is attached to the tip of the extension member, giving it significantly added weight. Always ensure the internal latch that holds the inner member in place is locked before attempting to use the pole.
  • Página 27 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 FIGURE 8A FIGURE 8B FIGURE 8C FIGURA 8A FIGURA 8B FIGURA 8C FIGURE 8A FIGURE 8B FIGURE 8C FIGURE 8D FIGURE 8E FIGURE 8F FIGURA 8D FIGURA 8E FIGURA 8F FIGURE 8D...

  • Página 28: Instale La Correa Alrededor Del Anclaje

    User Instructions  MSA Remote Connect/Disconnect System P/N R622333 6.4.4 INSTALL THE STRAP AROUND THE ANCHORAGE The Strap is now ready to be installed on the anchorage. Note that the label must be facing upward. Lift the stiff portion of the Strap over the anchorage.
  • Página 29 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 FIGURE 9A/FIGURA 9A/FIGURE 9A FIGURE 9B/FIGURA 9B/FIGURE 9B FIGURE 9C/FIGURA 9C/FIGURE 9C FIGURE 9D/FIGURA 9D/FIGURE 9D FIGURE 9E/FIGURA 9E/FIGURE 9E FIGURE 9F/FIGURA 9F/FIGURE 9F FIGURE 10A/FIGURA 10A/FIGURE 10A FIGURE 10B/FIGURA 10B/FIGURE 10B...

  • Página 30: Instalación Del Cabo Salvavidas Vertical

    RCD (izquierda) y Dyna-Lock Backpacker (derecha) snaphook. See figures 11 and 12. Système RCD (gauche) et Dyna-Lock Backpacker (droit) The Connect Tool and Combination Tool of the RCD System will work only when used with the MSA 36C-RCD and 36CS-RCD snaphooks. CAUTION...

  • Página 31: Instalación Del Cabo Salvavidas Vertical Con La Herramienta Combinada

    User Instructions  MSA Remote Connect/Disconnect System P/N R622333 6.5.2 INSTALLING VERTICAL LIFELINE WITH COMBINATION TOOL FIGURE 13A/FIGURA 13A/FIGURE 13A Begin by inserting the Combination Tool into the tool shank receptacle on the end of the Pole. Adjust the Pole to the needed length. Follow the procedures described above for the Strap Tool. See Figures 7a through 7d.
  • Página 32 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 Slowly raise Pole with both hands. Guide the lifeline by allowing it to feed through one hand. Bring snaphook up to D-ring of Strap. FIGURE 13E/FIGURA 13E/ FIGURE 13E Engage hook with D-ring as shown.
  • Página 33 Furthermore, the “first person up” can install additional anchorage connectors and lifelines on the anchorage (provided the anchorage is rated for multiple systems). This eliminates the need for using the RCD System to effect the installations necessary for co-workers to work aloft at the same time. Bear in mind that OSHA regulations and ANSI standards require that each person have a separate lifeline.
  • Página 34 No conecte los ganchos de seguridad o mosquetones entre sí. Consulte la norma ANSI Z359.1, secciones 7.2.2, 2.54 y 3.2.1.4. Los ganchos de seguridad 36C-RCD y 36CS-RCD de MSA son los únicos ganchos de seguridad que se autorizan para el uso con los sistemas RCD y cumplen con estos requisitos.

  • Página 35: Retiro Del Cabo Salvavidas Vertical Del Sistema Para Detención De Caídas

    Quite el gancho de seguridad de la herramienta tirando de este hacia afuera y alejándolo de la herramienta como se muestra. Limpie, inspeccione y almacene el equipo en la bolsa de transporte suministrada con el sistema RCD. RETRAIT DE LA LONGE VERTICALE DU DISPOSITIF ANTICHUTE Lorsque le travail est terminé...

  • Página 36: Retiro De La Correa

    Quite la correa de la herramienta. Limpie, inspeccione y almacene la correa y las herramientas en la bolsa de transporte suministrada con el sistema RCD. DÉCROCHAGE DE LA COURROIE S’assurer qu’aucune personne ne se trouve dans la zone en dessous de l’ancrage avant d’enlever la courroie.
  • Página 37 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 FIGURE 15A/FIGURA 15A/ FIGURE 15B/FIGURA 15B/ FIGURE 15C/FIGURA 15C/ FIGURE 15A FIGURE 15B FIGURE 15C FIGURE 15D/FIGURA 15D/ FIGURE 15E/FIGURA 15E/ FIGURE 15D FIGURE 15E © 2012 MSA Page 37...

  • Página 38: Uso Del Sistema Rcd Para Rescates

    ● Knife Tool See Figures 3, 6 and 8 for a general description of these tools. In some cases it may be necessary to use the Strap as an anchorage connector for a rescue device. The RCD System, when used as part of a rescue operation, must be used with an approved, lifting/lowering rescue device/system with its specified rescue line.

  • Página 39: Planificación De Rescate

    Cuando sea posible, el dispositivo de la línea de rescate y el conector de anclaje deben estar presentes en el sitio de trabajo, junto con el sistema RCD. Los trabajadores expuestos a peligros de caídas deben contar con un arnés de cuerpo entero y un anillo en D para el pecho para levantar y bajar.
  • Página 40 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 WARNING all members of the work team must receive hands-on training in all aspects of installation, rigging, use and inspection of the rescue and evacuation systems under the guidance of a qualified person. Training should be performed under controlled conditions which approximate likely work conditions and which provide backup safety for trainers and trainees.
  • Página 41 The following procedures use the RCD System to connect the rescue line to the fallen worker and cut the lanyard to enable retrieval.
  • Página 42 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 If the chest D-ring is not readily accessible, use the back (dorsal) D-ring of the harness, or turn the FIGURE 16C/FIGURA 16C/FIGURE 16C disabled worker to expose the chest D-ring. (The remainder of this procedure describes a rescue using the back D-ring.)

  • Página 43: Propósito Y Uso De La Herramienta De Cuchilla

    User Instructions  MSA Remote Connect/Disconnect System P/N R622333 PURPOSE AND USE OF THE KNIFE TOOL FIGURE 17A/FIGURA 17A/FIGURE 17A ● The connected lanyard of the fallen worker (described in section x.2) will hinder the rescue. ● Neither the fallen worker nor his rescuer can safely and quickly detach the worker from his lanyard by preferred alternative means.
  • Página 44 Limpie e inspeccione cuidadosamente la herramienta de cuchilla. ● Almacene la herramienta de cuchilla en la bolsa de transporte proporcionada con el sistema RCD. Utiliser la tige télescopique pour atteindre le cordon de sécurité du travailleur tombé. FIGURE 17F/FIGURA 17F/FIGURE 17F Saisir le cordon de sécurité...

  • Página 45: Inspección, Mantenimiento Y Almacenamiento

    INSPECTION, MAINTENANCE & STORAGE The components of each RCD System are inspected under controlled conditions at the factory before shipment. However, user inspection, maintenance and storage of the equipment takes on added importance once the system is subjected to potentially severe environmental and workplace conditions.

  • Página 46: Herramientas Del Rcd

    No exponga la vara a solventes. ● Almacene la vara en un sitio limpio y seco cuando no esté en uso. ● Si requiere reparar o reemplazar la vara, póngase en contacto con MSA. HERRAMIENTAS DEL RCD 8.2.1 INSPECCIÓN DE LAS HERRAMIENTAS DEL RCD INSPECCIONES LAS HERRAMIENTAS PARA ASEGURARSE DE QUE: ●...

  • Página 47: Herramienta De Cuchilla Del Rcd

    Maneje la herramienta de cuchilla con cuidado extremo al inspeccionar la cuchilla. 8.3.2 MANTENIMIENTO Y ALMACENAMIENTO DE LA HERRAMIENTA DE CUCHILLA DEL RCD ● Si es necesario, lubrique los puntos de la bisagra de la herramienta con un lubricante penetrante liviano.

  • Página 48: Correa Del Rcd

    Cuelgue la correa para que se seque al aire. ● Almacene la correa en la bolsa para transporte del RCD provista, en un sitio fresco, alejado de la exposición a la luz solar directa. Mantenga la parte interior de la bolsa limpia y seca. ●...
  • Página 49 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 PRODUCT LABELS/ETIQUETAS DEL PRODUCTO/ÉTIQUETTES DU PRODUIT RCD® INSTRUCTIONS FOR USE WARNING TELESCOPING POLE TO INSERT AND REMOVE TOOLS: Refer to user Manual (P/N 622333) for proper use of tools. AVOID POWER LINES! P/N 506639 &...
  • Página 50 For f ur t her i nst r uct i ons, consul t M ade ofal um i num and st eel . Avoi d M SA RCD Syst em UserI nst r uct i ons, cont act w i t h el ect r i cal sour ces.
  • Página 51 User Instructions  MSA Remote Connect/Disconnect System P/N R622333 © 2012 MSA Page 51...
  • Página 52 (18) mois à partir de la date d’expédition, la première des deux prévalant, pourvu que le produit soit entretenu et utilisé conformément aux instructions et/ou aux recommandations de MSA. Les pièces de rechange et les réparations sont garanties pour quatre-vingt-dix (90) jours à partir de la date de la réparation du produit ou de celle de la vente de la pièce de rechange, la première des deux prévalant.
